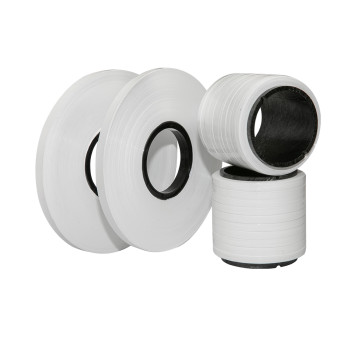

Unsintered PTFE films for low loss microwave coaxial cable
- group name
- Low Density PTFE Films
- Min Order
- 50 kilogram
- brand name
- Foreverseal PTFE Tapes Manufacturer
- model
- FS20-LD
- Nearest port for product export
- Shanghai, Ningbo业性质
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C
- Export mode
- Have the independent export and import right
- update time
- Tue, 14 Jul 2026 19:03:32 GMT
Paramtents
Brand & Logo: Foreverseal
Busniess type: Manufacturer
Material: PTFE
Specification: 0.70g/cm3
Color: transparent/white
Packging & Delivery
-
Min Order50 kilogram
Briefing
Unsintered PTFE films provide superior electrical, like low loss coaxial microwave cable...
Detailed
FEATURES
Low density ePTFE FILM
Low density Unsintered PTFE films produce micropore through stretch and under a certain specific and tightly controlled conditions to achieve low dielectric constant and high tensile strength.
It's light、soft、flame retardant and the low dielectric constant makes low density PTFE films for high frequency microwave coaxial cable applications in data transfer,militarty and medical field.
l Technical Data for low density unsintered ptfe tape:
THICKNESS | 0.051mm | 0.076mm | 0.102mm | 0.127mm | 0.152mm | 0.203mm | 0.254mm | |
|
TOLERANCE
|
+/-0.005 | +/-0.005 | +/-0.006 |
+/-0.0076
|
+/-0.0076 |
+/-0.01
|
+/-0.01
|
|
WIDTH | 4mm - 200mm | |||||||
DENSITY | 0.50g/cm3 - 0.90g/cm3 | |||||||
|
TENSILE STRENGTH (minimum)
|
12MPa |
|||||||
|
ELONGATION (minimum)
|
50% |
|||||||
Production Center/aboutus.htm
PTFE material record
Calender control
ePTFE FILM cutting
Main work shop
Where do we use our ePTFE FILM
Medical equipment
Robot
Military/defense
Radar
