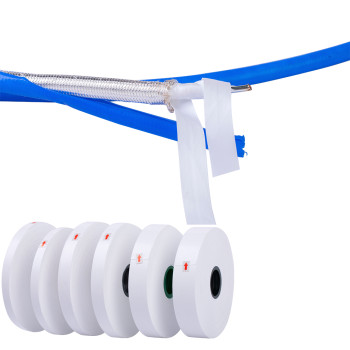

Unsintered PTFE cable wrapping tape for high temperature rsistance wires and cables
- group name
- High Density PTFE Films
- Min Order
- 50 kilogram
- brand name
- Foreverseal PTFE Tapes Manufacturer
- model
- FS18-H
- Nearest port for product export
- Shanghai, Ningbo业性质
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C
- Export mode
- Have the independent export and import right
- update time
- Wed, 15 Jul 2026 04:52:03 GMT
Paramtents
Brand & Logo: Foreverseal
Busniess type: Manufacturer
Material: PTFE
Specification: 1.60g/cm3
Packging & Delivery
-
Min Order50 kilogram
Briefing
Detailed
HIGH DENSITY (ePTFE) FILM & TAPE
High density PTFE films/tapes provide superior electrical and chemical of the standard serious. High density PTFE films/tapes are recommended in highly critical military and aerospace,to high demand general industrial.
MATERIAL | PTFE (Polytetrafluorethylene) | |||||||
COLOR | Natural,white or colors | |||||||
THICKNESS | 0.051mm | 0.076mm | 0.102mm | 0.127mm | 0.152mm | 0.203mm | 0.254mm | |
|
TOLERANCE
|
+/-0.005 | +/-0.005 | +/-0.006 |
+/-0.0076
|
+/-0.0076 |
+/-0.01
|
+/-0.01
|
|
WIDTH | 4mm - 200mm | |||||||
DENSITY | 1.60g/cm3 | |||||||
|
TENSILE STRENGTH (minimum)
|
15MPa |
|||||||
|
ELONGATION (minimum)
|
150% |
|||||||
· High temperature and chemical resistance
· Flammability resistivity
· High porosity results in superior dielectric properties
· High tensile strengths that support fast wrapping speeds
· Long joint free lengths
· RoHS and REAH compliant
· Wire and cable insulation for extreme chemical and thermal environments
· Binder tape in cable constructions and wire harnesses
· Dielectric material in coaxial cables
· Aircraft and high performance wire and cable
· And more
