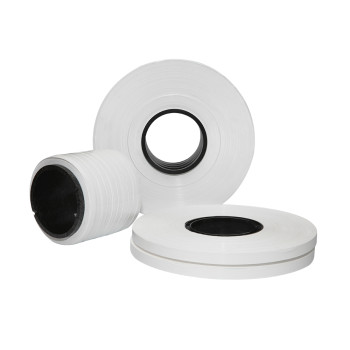

eptfe tape for Low density flexible low loss cable microwave coaxial cable
- group name
- Low Density PTFE Films
- Min Order
- 50 kilogram
- brand name
- Foreverseal PTFE Tapes Manufacturer
- model
- FS12-LD
- Nearest port for product export
- Shanghai, Ningbo业性质
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C
- Export mode
- Have the independent export and import right
- update time
- Tue, 14 Jul 2026 05:58:17 GMT
Paramtents
Brand & Logo: Foreverseal
Busniess type: Manufacturer
Material: PTFE
Specification: 0.50g/cm3 - 0.90g/cm3
Color of tape: White
Packging & Delivery
-
Min Order50 kilogram
Briefing
low density ptfe tape for flexible low loss cable microwave coaxial cable insulation、binder tape in cable consructions
Detailed
FEATURES
Low density ePTFE FILM
low density eptfe tape for flexible low loss cable microwave coaxial cable insulation、binder tape in cable consructions.
Low density PTFE film & tape produce micropore through stretch and under a certain specific and tightly controlled conditions to achieve low dielectric constant and high tensile strength.
It's light、soft、flame retardant and the low dielectric constant makes low density PTFE tapes for high frequency microwave coaxial cable applications in data transfer,militarty and medical field.
l Technical Data for low density ePTFE FILM:
THICKNESS | 0.051mm | 0.076mm | 0.102mm | 0.127mm | 0.152mm | 0.203mm | 0.254mm | |
|
TOLERANCE
|
+/-0.005 | +/-0.005 | +/-0.006 |
+/-0.0076
|
+/-0.0076 |
+/-0.01
|
+/-0.01
|
|
WIDTH | 4mm - 200mm | |||||||
DENSITY | 0.50g/cm3 - 0.90g/cm3 | |||||||
|
TENSILE STRENGTH (minimum)
|
12MPa |
|||||||
|
ELONGATION (minimum)
|
50% |
|||||||
Production Center/aboutus.htm
PTFE material record
Calender control
ePTFE FILM cutting
Main work shop
Where do we use our ePTFE FILM
Medical equipment
Robot
Military/defense
Radar
