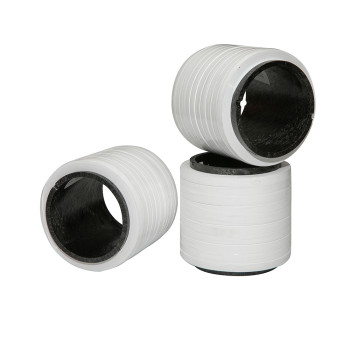

PTFE Film Tape For Wire and Cable RF Cable Wrapping Tape
- group name
- Low Density PTFE Films
- Min Order
- 50 kilogram
- brand name
- Foreverseal PTFE Tapes Manufacturer
- model
- FS10-LD
- Nearest port for product export
- Shanghai, Ningbo业性质
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C
- Export mode
- Have the independent export and import right
- update time
- Sat, 27 Jun 2026 23:33:10 GMT
Paramtents
Brand & Logo Foreverseal
Busniess type Manufacturer
Material PTFE(Polytetrafluorethylene)
Standard density 0.50g/cm3 - 0.90g/cm3
Thickness 50mm - 254mm
Width 5-200mm
Packging & Delivery
-
Min Order50 kilogram
Briefing
Detailed
LOW DENSITY (ePTFE) FILM & TAPE
Low density PTFE film & tape produce micropore through stretch and under a certain specific and tightly controlled conditions to achieve low dielectric constant and high tensile strength.
It's light、soft、flame retardant and the low dielectric constant makes low density PTFE tapes for high frequency microwave coaxial cable applications in data transfer,militarty and medical field.
MATERIAL | PTFE(Polytetrafluorethylene) | |||||||
COLOR | NATURE | |||||||
THICKNESS | 0.051mm | 0.076mm | 0.102mm | 0.127mm | 0.152mm | 0.203mm | 0.254mm | |
|
TOLERANCE
|
+/-0.005 | +/-0.005 | +/-0.006 |
+/-0.0076
|
+/-0.0076 |
+/-0.01
|
+/-0.01
|
|
WIDTH | 4mm - 200mm | |||||||
DENSITY | 0.50g/cm3 - 0.90g/cm3 | |||||||
|
TENSILE STRENGTH (minimum)
|
12MPa |
|||||||
|
ELONGATION (minimum)
|
50% |
|||||||
· High temperature and chemical resistance
· Flammability resistivity
· High porosity results in superior dielectric properties
· High tensile strengths that support fast wrapping speeds
· Long joint free lengths
· RoHS and REAH compliant
· Wire and cable insulation for extreme chemical and thermal environments
· Binder tape in cable constructions and wire harnesses
· Dielectric material in coaxial cables
· Convoluted hose constructions
· And more
